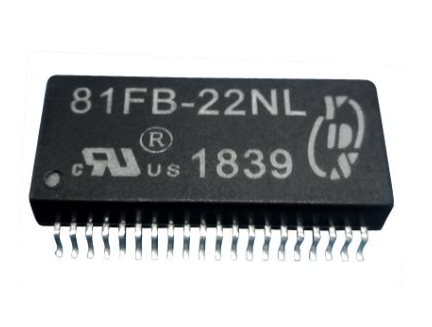

ELECTRICAL SPECFICATIONS@25℃:

1. Turn Ratio(±2%): 1CT:1CT

2. OCL(100KHz/0.1V):150uH MIN

3. LL(100KHz/0.1V):0.5 uH MAX

4. Pri DCR:0.55ΩMAX

5. Sec DCR:0.85ΩMAX

6. Insertion Loss (dB MAX):-0.25dB(4MHz)

7. Return Loss(dB MIN): -20dB(4MHz)

8. CMR(dB TYP): -35dB(1~10MHz),-20dB(10-1000MHz)

9. HI-POT:4300VDC/0.5mA/60Sec

10. Operating Temperature: -40℃～+125℃

11. RoHS compliance:YES

12. Comply with AEC-Q200 standard

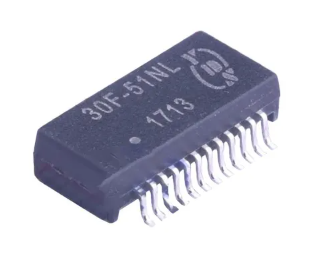

ELECTRICAL SPECFICATIONS@25℃:

1. Turn Ratio(±5%): 1CT:1CT

2. Inductance(100KHz/0.1V@8mA): 350uH MIN

3. Insertion Loss (dB MAX): -1.0dB(1-100MHz)

4. Return Loss (dB MIN): -18dB(1-30MHz), -14dB(40MHz),-13dB(50MHz),

-12dB(60-80MHz), -10dB(100MHz)

5. Cross talk (dB TYP): -45dB(30MHz), -40dB(60MHz), -35dB(100MHz)

6. CMR (dB TYP): -43dB(30MHz), -37dB(60MHz), -33dB(100MHz)

7. HI-POT: 1500Vrms/0.5mA/60Sec or 1650Vrms//0.5mA/2Sec

8. Operating Temperature: -40℃ TO +85℃

ELECTRICAL SPECFICATIONS@25℃:

1. Turn Ratio(±3%): 1CT:1CT

2. Inductance(100KHz/0.1V@8mA): 350uH MIN

3. Insertion Loss(dB TYP): -0.5dB (0.1-100MHz)

4. Return Loss (dB MIN): -18dB(2-30MHz), -14.4dB(40MHz),

-13.1dB(50MHz), -12dB (60-80MHz)

5. HI-POT: 1500Vrms/0.5mA/60Sec or 1650Vrms/0.5mA/2Sec

6. Operating Temperature:-40℃ TO +85℃

ELECTRICAL SPECFICATIONS@25℃:

1. Turn Ratio(±5%): 1CT:1

2. Inductance (100KHz/0.1V@8mA): 350uH MIN.

3. Insertion Loss(dB MAX): -1.0dB(0.3-100MHz)

4. Return Loss (dB MIN):-18dB(1-30MHz), -14.4dB(40MHz),-13.1dB(50MHz),

-12dB(60-80MHz), -10dB(100MHz)

5. Cross Talk(dB MIN): -30dB(1-100MHz)

6. DCMR(dB MIN): -43dB(30MHz),-37dB(80MHz), -33dB(100MHz)

7. HI-POT: 1500Vrms/0.5mA/60Sec or 1650Vrms/0.5mA/2Sec

8. Operating Temperature:-40℃ TO +85℃

9. 0.35A Current Carrying Capacity Per Pair On Line-Side For High Power

POE Applications.

10.Pri DCR: 0.9ΩMAX

11. Sec DCR: 1.2ΩMAX

12. Insulation Resistance: 100V/100MΩ

11FB SERIES

Features

-Meet IEEE 802.3 and ANSI X3.263 standards including 350 uH OCL with 8mA Bias.

-Designed to withstand IR reflow temperatures up to 240°C.

-Compact footprint use in the most space restrictive applications.

Applications

-Internet equipment.

-telecom equipment.

-wireless router station.

-VoIP devices.

-Aviation.

-Musical Instruments.
