Resistance (Ω)

Wire Wound
Fixed Power Wirewound
Symmetry Resistors And/Or Capacitors Discharge
Thick Film Power

Product	Datasheet	Brand	Resistance (Ω)	Max Voltage	Rated Power	Temperature Rise (°C/W)	Tolerance
3CS 15K 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 1.46 € 1.46 EUR	Data sheet	ATE	15kΩ	200V	4W	74	N/A
3CS 13K 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 1.46 € 1.46 EUR	Data sheet	ATE	13kΩ	200V	4W	74	N/A

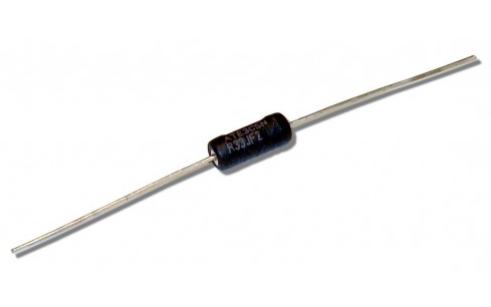

3CS 12K 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 1.46 € 1.46 EUR	Data sheet	ATE	12kΩ	200V	4W	74	N/A
3CS 11K 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 1.46 € 1.46 EUR	Data sheet	ATE	11kΩ	200V	4W	74	N/A
3CS 10K 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 0.53 € 0.53 EUR	Data sheet	ATE	10kΩ	200V	4W	74	N/A
3CS 1K8 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 0.42 € 0.42 EUR	Data sheet	ATE	1,8kΩ	200V	4W	74	N/A
3CS 1K6 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 0.42 € 0.42 EUR	Data sheet	ATE	1,6kΩ	200V	4W	74	N/A
3CS 1K5 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 0.42 € 0.42 EUR	Data sheet	ATE	1,5kΩ	200V	4W	74	N/A
3CS 1K3 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 0.42 € 0.42 EUR	Data sheet	ATE	1,3kΩ	200V	4W	74	N/A
3CS 1K2 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 0.42 € 0.42 EUR	Data sheet	ATE	1,2kΩ	200V	4W	74	N/A
3CS 1K1 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 0.42 € 0.42 EUR	Data sheet	ATE	1,1kΩ	200V	4W	74	N/A
3CS 1K 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 0.42 € 0.42 EUR	Data sheet	ATE	1kΩ	200V	4W	74	N/A
3CS 180R 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 0.42 € 0.42 EUR	Data sheet	ATE	180Ω	200V	4W	74	N/A
3CS 160R 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 0.42 € 0.42 EUR	Data sheet	ATE	160Ω	200V	4W	74	N/A
3CS 150R 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 0.42 € 0.42 EUR	Data sheet	ATE	150Ω	200V	4W	74	N/A
3CS 130R 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 0.42 € 0.42 EUR	Data sheet	ATE	130Ω	200V	4W	74	N/A
3CS 120R 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 0.42 € 0.42 EUR	Data sheet	ATE	120Ω	200V	4W	74	N/A
3CS 110R 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 0.42 € 0.42 EUR	Data sheet	ATE	110Ω	200V	4W	74	N/A
3CS 100R 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 0.42 € 0.42 EUR	Data sheet	ATE	100Ω	200V	4W	74	N/A
3CS 18R 5% Wirewound Resistors – CS Series Easy replacement for vitreous enamel resistors Multi-layer silicone coating for maximum wire protection Operating temperature range: -55°C to +350°C Ceramic core for durability and uniformity Low temperature coefficient and excellent stability Fully welded construction for high reliability Standard tolerance: 5% Optional tolerances available: 3%, 2%, 1% and 0.5% upon request 0.42 € 0.42 EUR	Data sheet	ATE	18Ω	200V	4W	74	N/A
