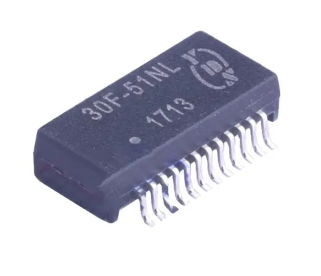

30F-51BNL

AMOUNT Unit Price
1 0,64 €
100 0,55 €
1.000 0,48 €
5.000 Price on request

ELECTRICAL SPECFICATIONS@25℃:

1. Turn Ratio(±5%): 1CT:1CT

2. Inductance(100KHz/0.1V@8mA): 350uH MIN

3. Insertion Loss (dB MAX): -1.0dB(1-100MHz)

4. Return Loss (dB MIN): -18dB(1-30MHz), -14dB(40MHz),-13dB(50MHz),

-12dB(60-80MHz), -10dB(100MHz)

5. Cross talk (dB TYP): -45dB(30MHz), -40dB(60MHz), -35dB(100MHz)

6. CMR (dB TYP): -43dB(30MHz), -37dB(60MHz), -33dB(100MHz)

7. HI-POT: 1500Vrms/0.5mA/60Sec or 1650Vrms//0.5mA/2Sec

8. Operating Temperature: -40℃ TO +85℃
