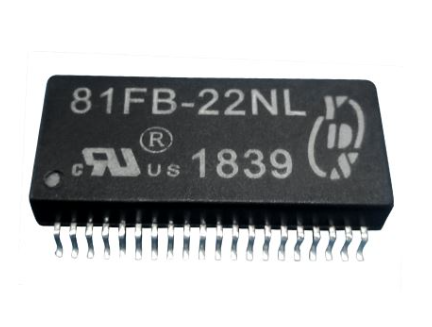

81FB-22NL

AMOUNT Unit Price
1 1,15 €
100 0,97 €
1.000 0,85 €
5.000 Price on request

ELECTRICAL SPECFICATIONS@25℃:

1. Turn Ratio(±3%): 1CT:1CT

2. Inductance(100KHz/0.1V@8mA): 350uH MIN

3. Insertion Loss(dB TYP): -0.5dB (0.1-100MHz)

4. Return Loss (dB MIN): -18dB(2-30MHz), -14.4dB(40MHz),

-13.1dB(50MHz), -12dB (60-80MHz)

5. HI-POT: 1500Vrms/0.5mA/60Sec or 1650Vrms/0.5mA/2Sec

6. Operating Temperature:-40℃ TO +85℃
