Do you need sample quantities... Contact our salesteam today!



K-TEK-B107-38-MTB-AVR-BT-DWP

https://isatronick.be/web/image/product.template/7488/image_1920?unique=561d1ed

0.00 € 0.0 EUR 0.00 € VAT Excluded

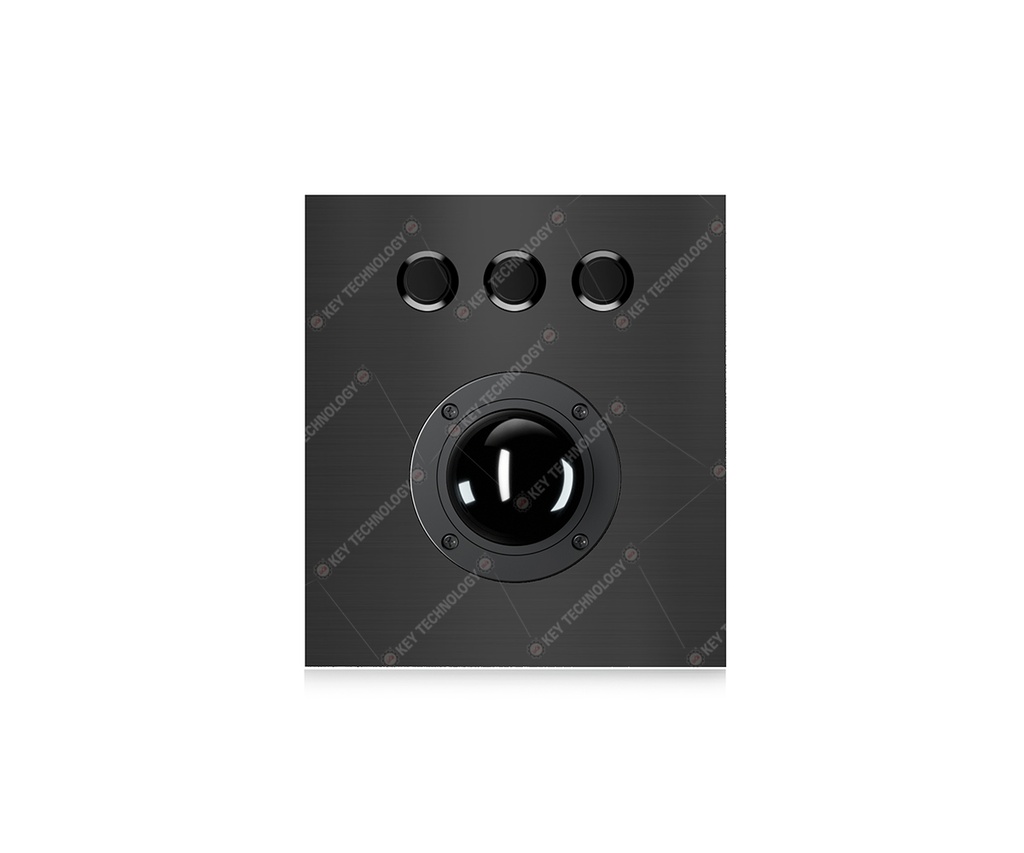

Rugged IP65 Mechanical Trackball Module with Buttons

  • IP65 rated & washable – resistant to dust, water, oil, and contaminants
  • 38 mm mechanical trackball with 400 DPI for precise cursor control
  • Anti-vibration design – smooth, stable, and silent operation
  • 3 IP68 sealed stainless steel buttons
    • Left & right click
    • Scroll function via ball rolling
  • Vandal-proof stainless steel construction
    • Scratch-resistant black titanium electroplated surface
    • Corrosion and salt spray resistant

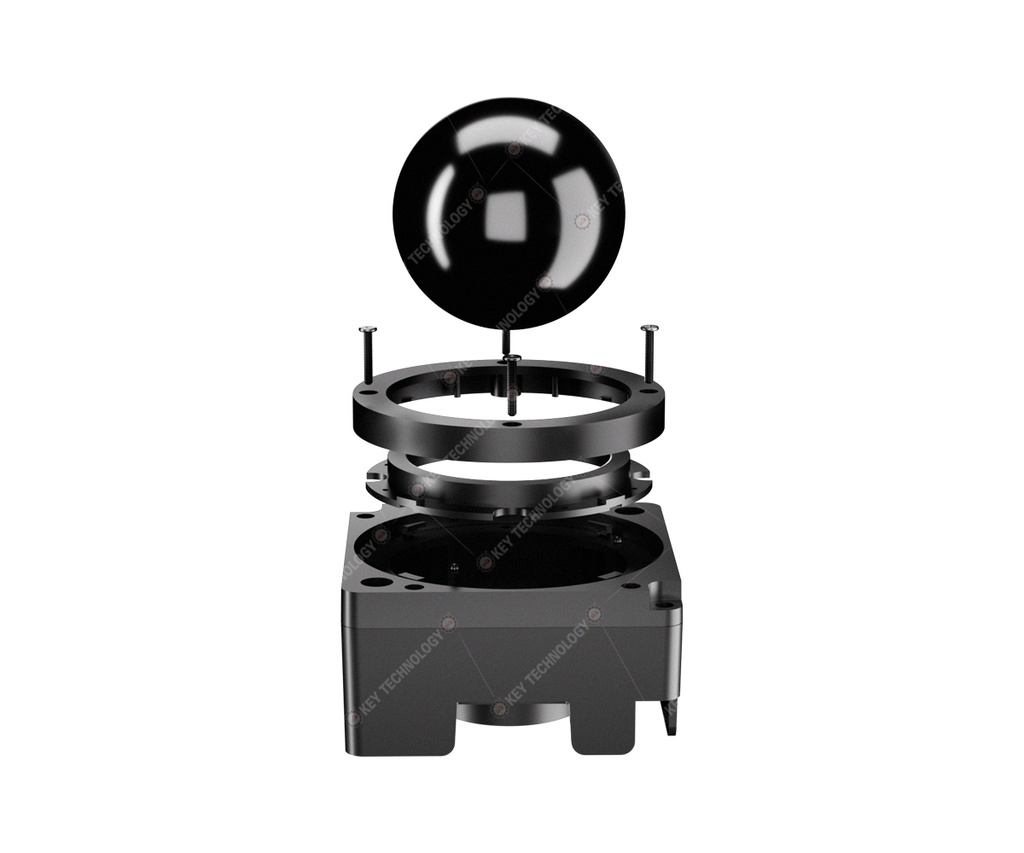

  • Removable trackball for easy cleaning and maintenance
  • Shielded stainless steel housing for durability and protection
  • Top panel mounting with threaded bolts for secure installation
  • Built for harsh outdoor environments – rain, humidity, dirt, and extreme conditions
  • Dimensions: 107.0 × 120.0 mm (top panel)

Ideal for Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

    This combination does not exist.

    RoHS

    Specifications

    Brand K-TEK
    Number of Keys 3
    Key Travel 1.40mm
    Interface USB/PS2 optional
    Protection Level IP65 dynamic
    Mounting Solution Top panel mount
    Operating Temp -40/+75°C
    Ball Diameter 38.0mm
