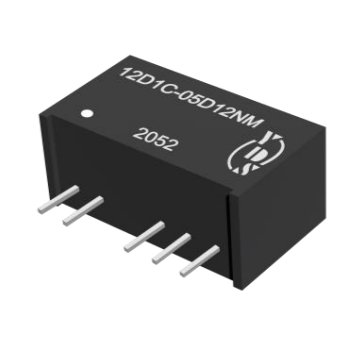

12D1C-05D09NM

https://isatronick.be/web/image/product.template/6694/image_1920?unique=70b2227

2.25 € 2.25 EUR 2.25 € VAT Excluded

Price on request

DC-DC Converter 12D1C-NM SERIES

- 7PIN SIP Package

- Continuous short-circuit protection

- The leakage current < 1.5μA

- Isolation capacitance as low as 4pF

- Creepage &clearance distance > 5mm

- High efficiency up to 83%

- Unregulated output types

- 5000Vac or 6000Vdc isolation

- Operating temperature:-40℃ to +105℃

- Industry standard pinout

- UL/cUL/IEC/EN 62368-1 approved, CB-Report
- UL/cUL/IEC/EN 60601-1 approved, CB-Report
- EMC Standard of EMI EN55032:2015 Approved
- EMC Standard of EMS EN55035:2017 Approved
- Medical EMC Standard of EMI EN 60601-1-2:2014+A1:2020 Approved.
- Medical EMC Standard of EMS EN 60601-1-2:2015+A1:2021 Approved

  • Brand
  • Input Voltage
  • Output Voltage
  • Output Current
  • Efficiency
  • Capacitive Load
  • Isolation
  • Power
  • Package
  • Output Type
  • Application
  • Number of Outputs

This combination does not exist.

Contact Us
RoHS

Terms and Conditions

Specifications

Brand YUAN DEAN SCIENTIFIC
Input Voltage 5Vdc
Output Voltage ±9Vdc
Output Current ±56mA
Efficiency 80%TYP
Capacitive Load ±470µF
Isolation 6KVDC
Power 1W
Package SIP7
Output Type Unregulated
Application EN 60601 (medical)
Number of Outputs Dual
