12D1C-03D05NM

AMOUNT Unit Price
1 2,25 €
100 1,93 €
1.000 1,70 €
5.000 Price on request

2.25 € 2.25 EUR 2.25 € VAT Excluded

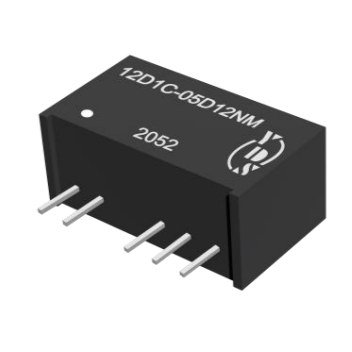

DC-DC Converter 12D1C-NM SERIES

- 7PIN SIP Package

- Continuous short-circuit protection

- The leakage current < 1.5μA

- Isolation capacitance as low as 4pF

- Creepage &clearance distance > 5mm

- High efficiency up to 83%

- Unregulated output types

- 5000Vac or 6000Vdc isolation

- Operating temperature:-40℃ to +105℃

- Industry standard pinout

- UL/cUL/IEC/EN 62368-1 approved, CB-Report
- UL/cUL/IEC/EN 60601-1 approved, CB-Report
- EMC Standard of EMI EN55032:2015 Approved
- EMC Standard of EMS EN55035:2017 Approved
- Medical EMC Standard of EMI EN 60601-1-2:2014+A1:2020 Approved.
- Medical EMC Standard of EMS EN 60601-1-2:2015+A1:2021 Approved

Brand
- YUAN DEAN SCIENTIFIC
Input Voltage
Output Voltage
Output Current
Efficiency
- 80%TYP
Capacitive Load
- ±1200μF
Isolation
Power
Package
Output Type
- Unregulated
Application
Number of Outputs

This combination does not exist.

Add to cart

Documents

12D1C-N2M Series.pdf

Terms and Conditions

Specifications

Brand	YUAN DEAN SCIENTIFIC
Input Voltage	3,3Vdc
Output Voltage	±5Vdc
Output Current	±100mA
Efficiency	80%TYP
Capacitive Load	±1200μF
Isolation	6KVDC
Power	1W
Package	SIP7
Output Type	Unregulated
Application	EN 60601 (medical)
Number of Outputs	Dual
