01DC-1R8-500

https://isatronick.be/web/image/product.template/6887/image_1920?unique=c61670a

AMOUNT ​ ​Unit Price
1 ​ ​2,50  €​
100 ​ ​1,32 €
500 ​ ​1,16 €
1.000 ​ ​1,09 €
5.000 ​ ​ ​Price on request

2.50 € 2.5 EUR 2.50 € VAT Excluded

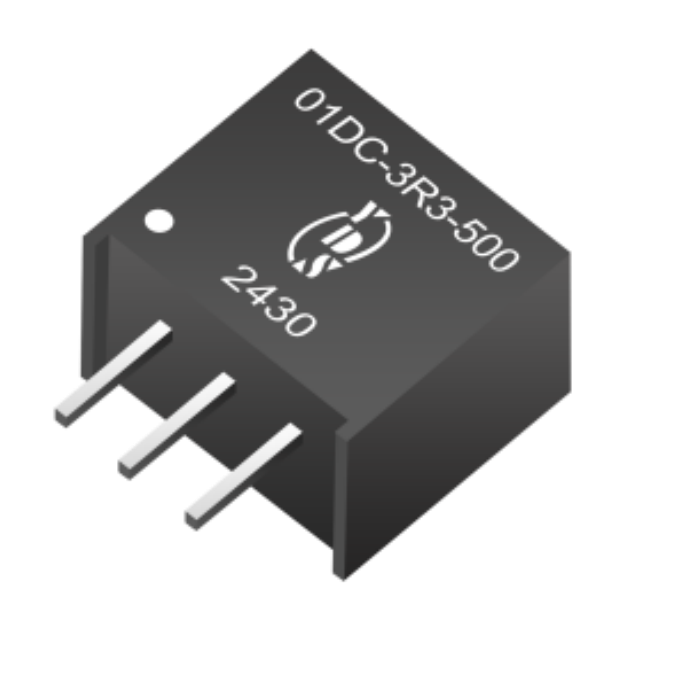

DC-DC Converter 01DC-500 SERIES

- 3PIN SIP Package

- Pin-out compatible with LM78XX Linear

- Efficiency up to 95%,Non isolated, no need for heatsinks

- UL94V-0 package material

- Operating temperature from -40℃to +85℃

- No-load input current as low as 0.3mA

- Short circuit protection

- UL/cUL/IEC/EN 62368-1 approved, CB-Report

- EMC Standard of EMI EN55032:2015 Approved

- EMC Standard of EMI EN55032:2015 Approved


    This combination does not exist.

    Contact Us
    RoHS

    Terms and Conditions

    Specifications

    Brand YUAN DEAN SCIENTIFIC
    Input Voltage 4.75-36Vdc
    Output Voltage ±1.8Vdc
    Output Current 500mA
    Efficiency 82%TYP
    Capacitive Load 1000µF
    Package SIP3
    Application EN 62368 (ITE / Industry)
