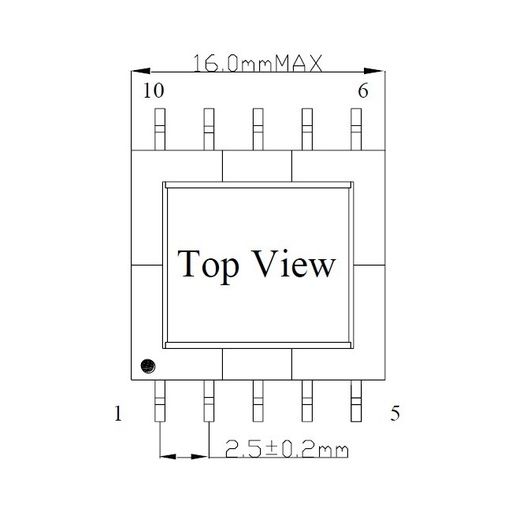

Transformer

Electrical Specifications @25℃:

- TurnRatio: (2-1):(4-5):(7-6):(10-9) =19:38:38:38±3%

- L (100KHz/0.1V) : (2-1) 30uH±10%

- LK(100KHz/0.1V) : (2-1 other pin short) 0.70uHMAX

- DCR:(2-1) 0.137ΩMAX (4-5) 2.39ΩMAX

(10-9) 0.65ΩMAX (7-6)2.24ΩMAX

- HI-POT: PRI TO SEC AC3750V /3mAMAX/ 3S
